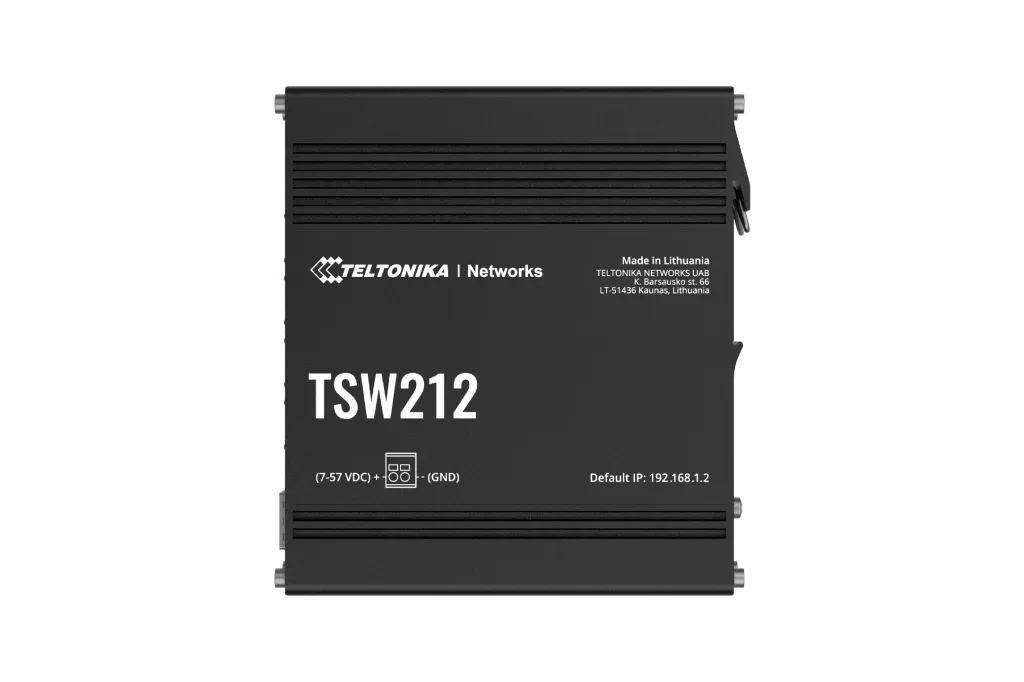

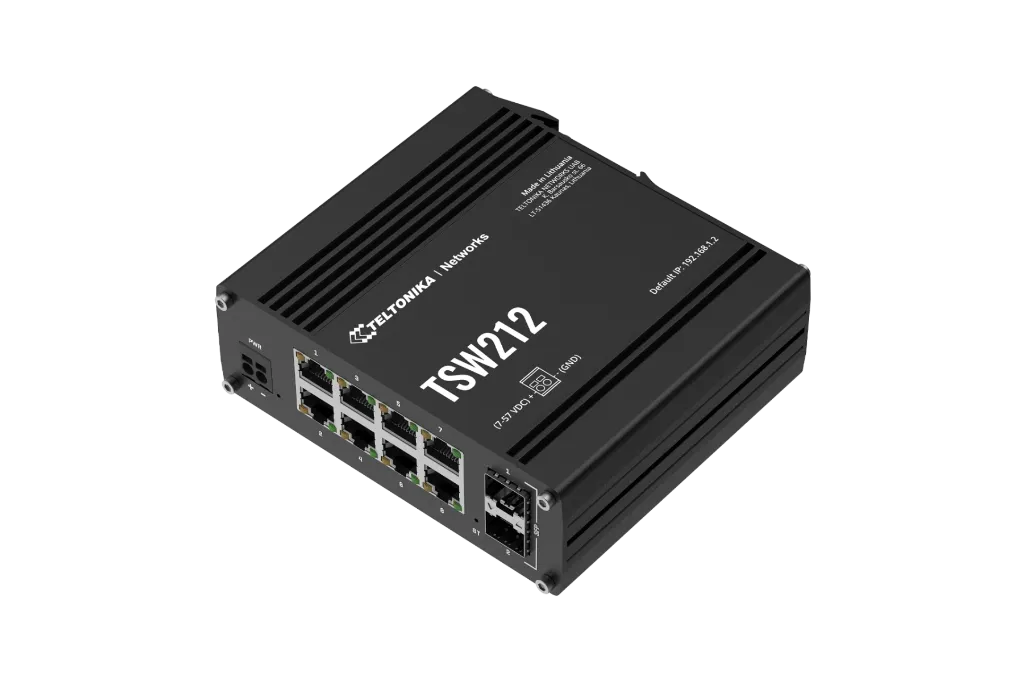

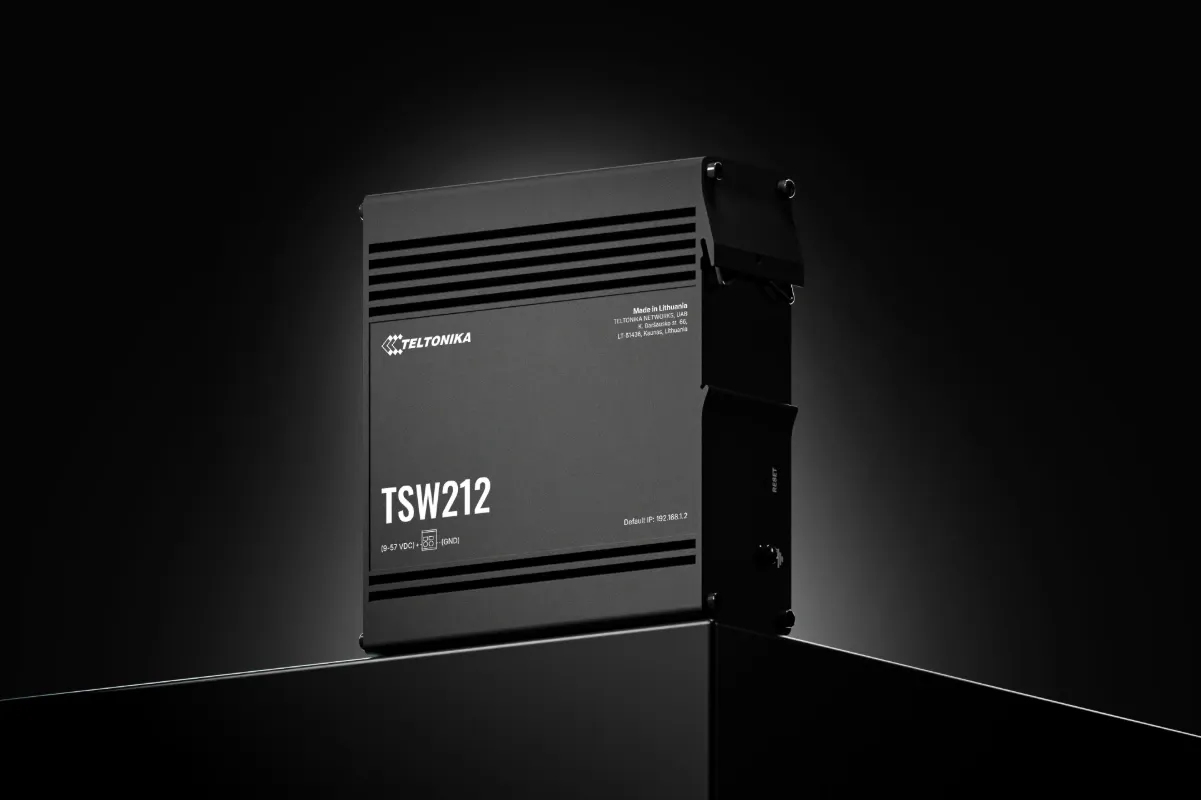

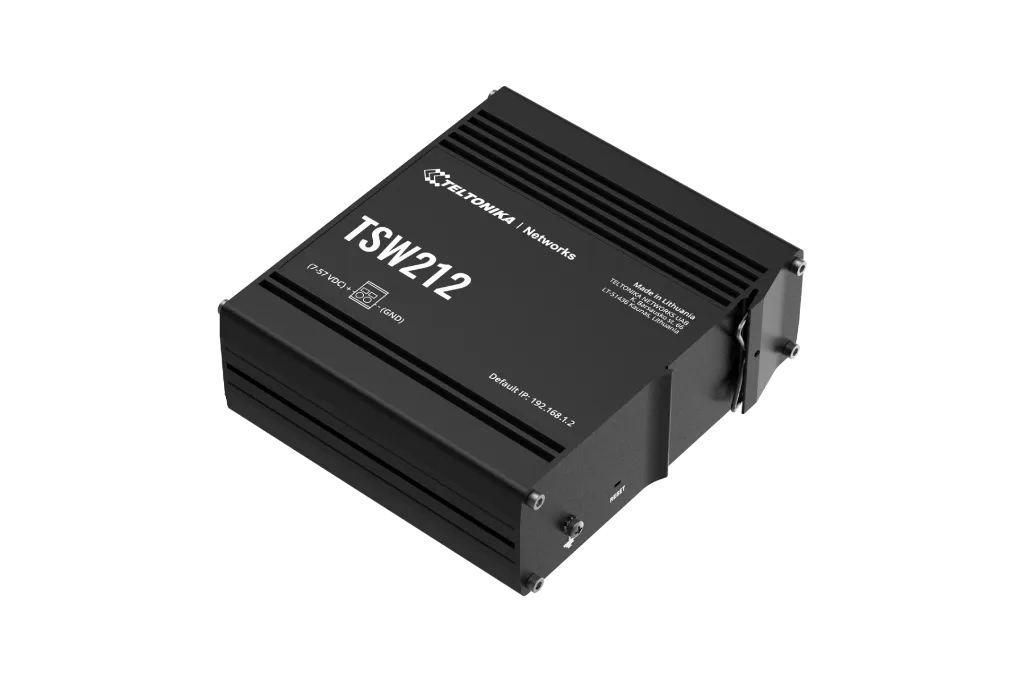

TSW212

MANAGED ETHERNET SWITCH

TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.

₹ 1,000.00 ₹ 1,000.00

  • Wi-Fi
  • Cellular Connectivity
  • Ethernet Ports
  • Brand
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Ethernet Ports: 4 Eth Ports
Brand: Teltonika

Ethernet

ETH Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre 2 x SFP ports
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Industrial Protocols

Profinet Profinet Class B conformance (available with optional order code)

Services

EtherNet/IP Yes
SNMP V2, V3 Yes
LLDP Yes

Network Management

802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN Supported

Network

MRP MRP client role, MRP manager role
Port aggregation 802.3ad (LACP)
L2 features Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Multicast IGMP snooping, multicast querier support
Port Settings Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
L3 Features Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Routing Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)

Security

Authentication PAM — preshared key, Radius & TACACS+, IP & login attempts block
MAC filtering support Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected

QoS

QOS Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method SP/WFQ/WRR
Bandwidth control Rate limiting, storm control
Traffic Shaper Port-based shaping

Diagnostics

Tools Cable diagnostic, ping, traceroute, nslookup

API

Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation .

Monitoring & Management

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)

System Characteristics

RAM 128MB, DDR3
FLASH storage 16 MB serial flash

Firmware/Configuration

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration

Firmware Customisation

Operating system TSWOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided

Performance Specifications

Bandwidth (Non-blocking) 20 Gbps
Forwarding rate 14.88 Mpps
Packet buffer 512 KB
MAC address table size 8K entries
Jumbo frame support 10000 bytes

Power

Connector 2-pin industrial DC power socket
Input voltage range 7 – 57 VDC, reverse polarity protection: -80Vmax
Power consumption Idle: < 2.5 W / Max: 6 W
Surge at AC mains power port** 1kV Line to line; 2kV line to ground, 1.2/50us, IEC 61000-4-5
Surge at signal port (Ethernet) 1kV Line to Ground, 1.2/50us, IEC 61000-4-5

** Tested with Teltonika's PSU. Test does not apply to direct DC power.

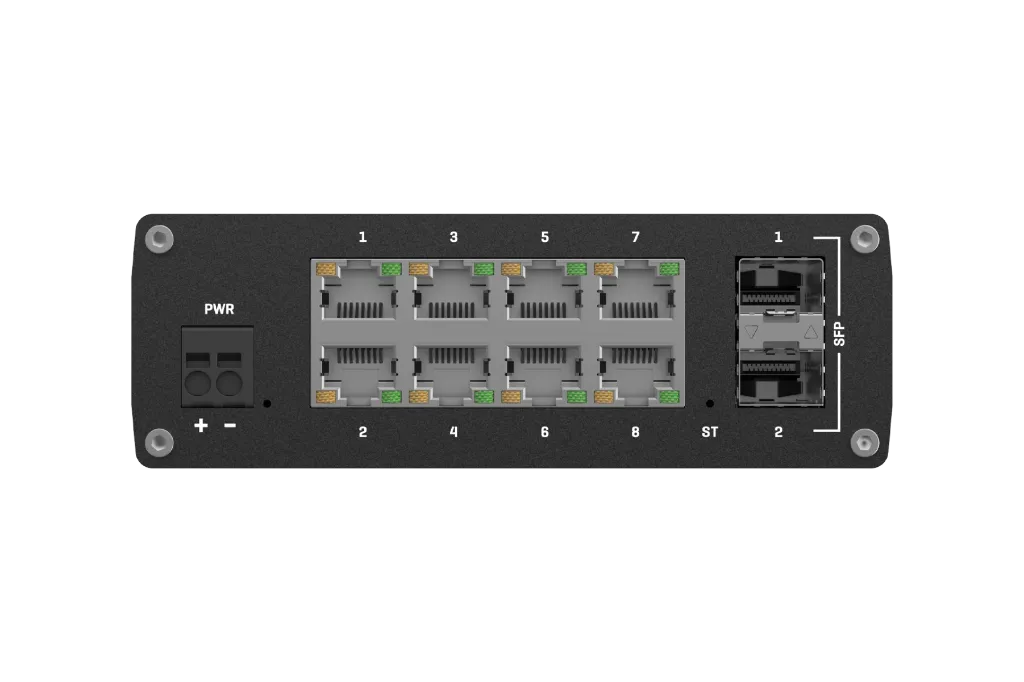

Physical Interfaces

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fibre 2 x SFP ports
Status LEDs 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power 1 x 2-pin industrial DC power socket
Reset Software reset button
Other 1 x Grounding screw

Physical Specification

Casing material Anodised aluminium housing and panels
Dimensions (W x H x D) 132 x 44.2 x 122.2 mm
Weight 615 g
Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature -40 °C to 75 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

Manual & Documentation

TSW212 FLYER (EN)
TSW212 DATASHEET (EN)

STANDARD PACKAGE*

  • TSW212
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

CLASSIFICATION CODES

HS Code: 851762

HTS: 8517.62.00

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS

Hardware version Supported frequencies Standard order code / Package Contains
TSW212 *****0
PROFINET disabled by default 		N/A TSW212000000 / Standard package without PSU
TSW212000300 / Standard Package with EU PSU without connector
TSW212 *****1
Profinet Class B conformance 		N/A TSW212000001 / Standard package without PSU
