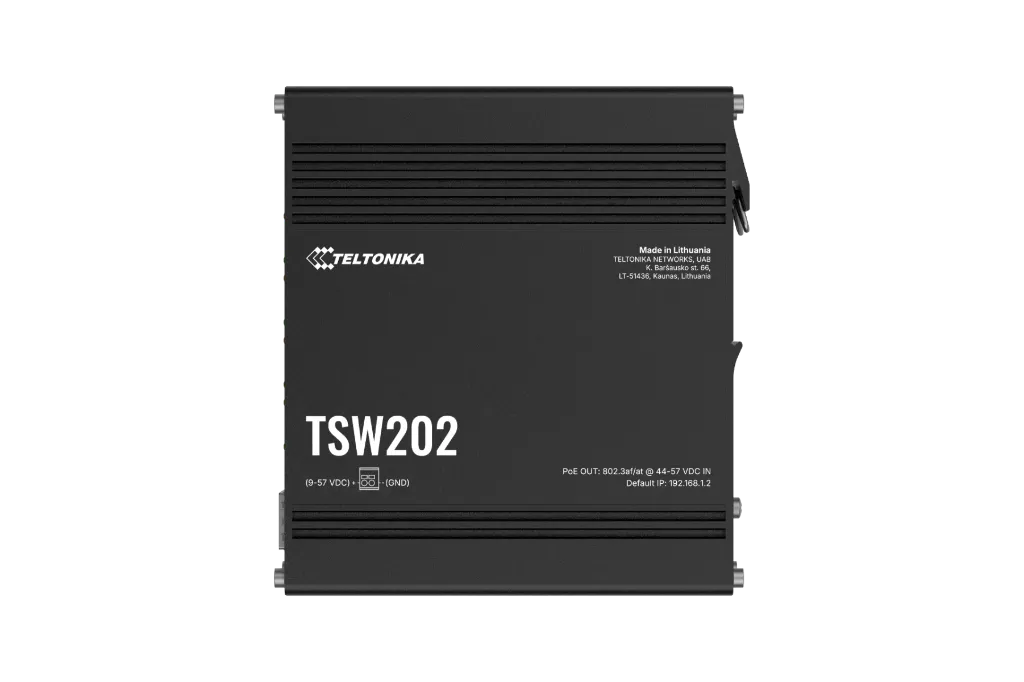

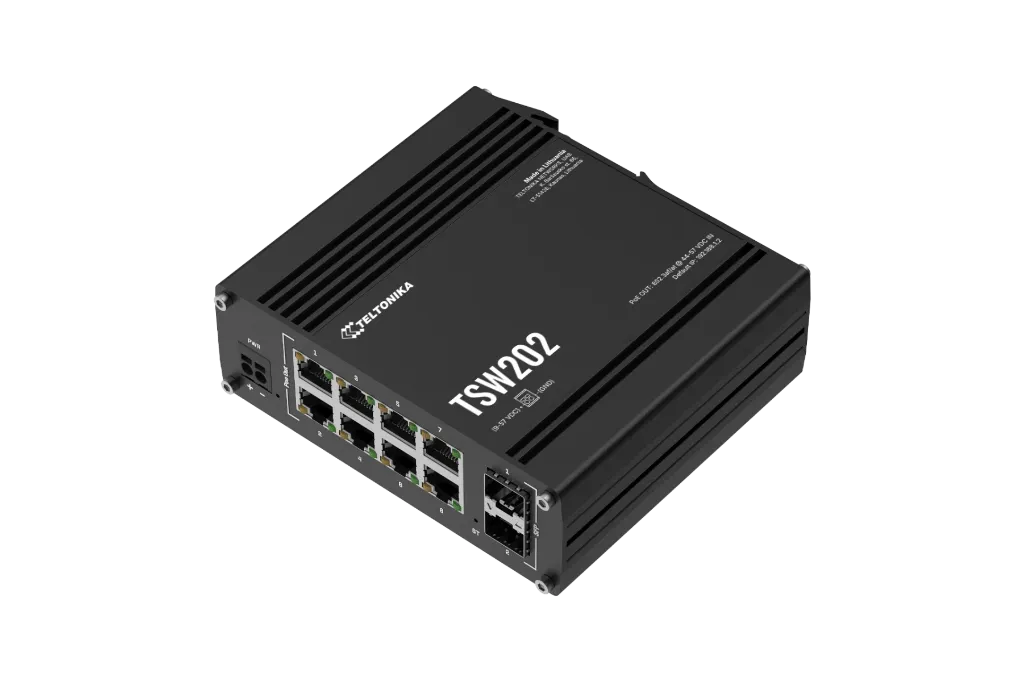

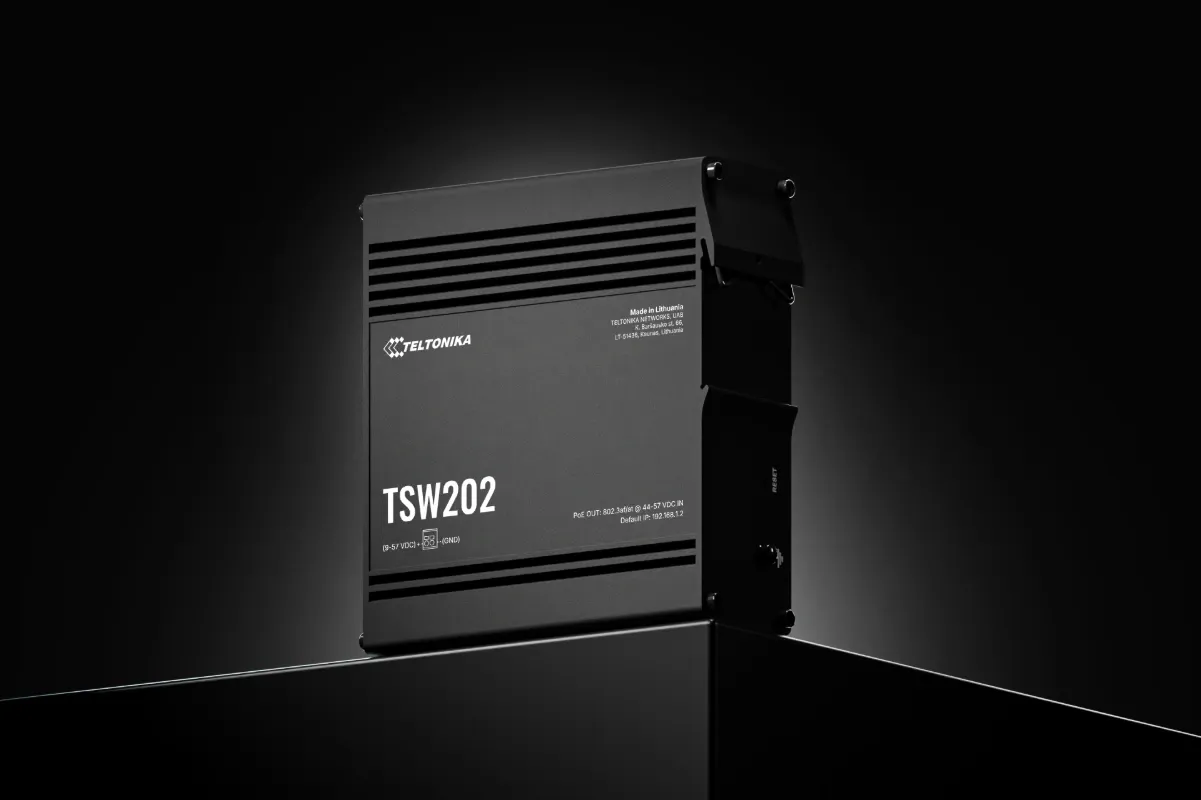

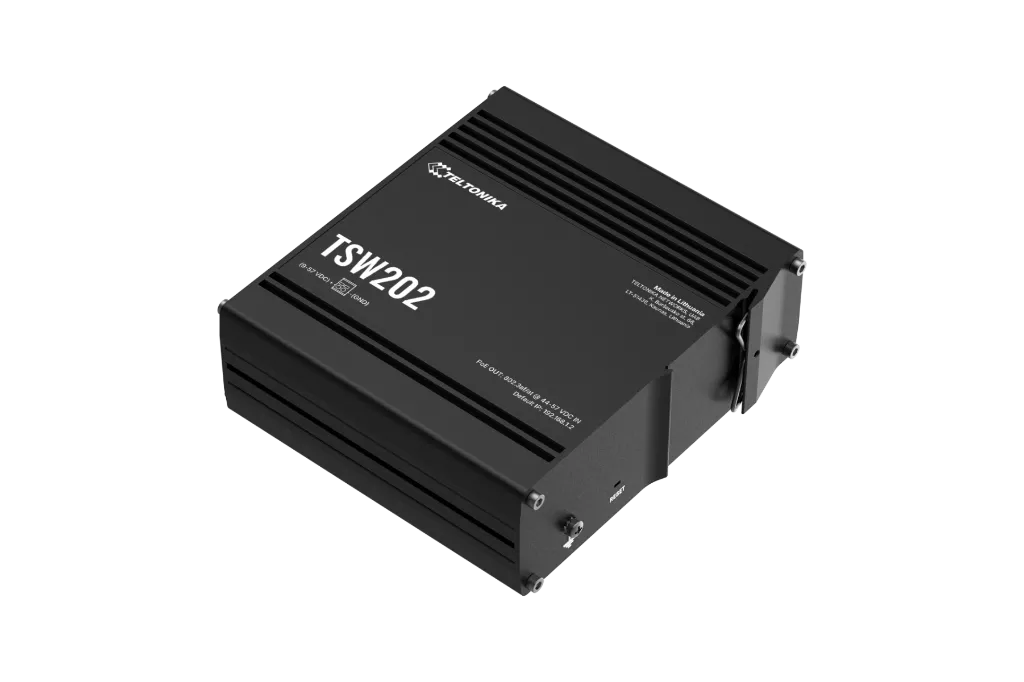

TSW202

MANAGED PoE+ ETHERNET SWITCH

TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.

₹ 1,000.00 ₹ 1,000.00

  • Wi-Fi
  • Cellular Connectivity
  • Ethernet Ports
  • Brand
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Ethernet Ports: 4 Eth Ports
Brand: Teltonika

Ethernet

ETH Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre 2 x SFP ports
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z, 802.3ad

Industrial Protocols

Profinet Profinet Class B conformance (available with optional order code)

PoE Out

PoE+ ports Port 1 - 8
PoE standards IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Batch 15 and all batches from Batch 17 onward)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Batches 1–14 and Batch 16)
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 240 W
Maximum Ethernet cable length 100 m
PoE protection Short-circuit and overload protection

Services

EtherNet/IPYes
SNMP V2, V3Yes
LLDPYes

Network Management

Network Management 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network

MRPMRP client role, MRP manager role
Port aggregation802.3ad (LACP)
L2 featuresLoop protection, Forwarding table, VLAN, STP/RSTP
DHCPDHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
MulticastIGMP snooping, multicast querier support
Port SettingsEnable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 FeaturesStatic IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
RoutingDynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)

Security

Authentication PAM — preshared key, Radius & TACACS+, IP & login attempts block
MAC filtering support Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected

QoS

QOSPort priority, DSCP priority, 802.1p priority, TOS
Scheduling methodSP/WFQ/WRR
Bandwidth controlRate limiting, storm control
Traffic ShaperPort-based shaping

Diagnostics

ToolsCable diagnostic, ping, traceroute, nslookup
Ping rebootCapability to restart PoE in a specific port

API

Teltonika Networks Web API Beta support. Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to the Teltonika Networks API documentation.

Monitoring & Management

WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)

System Characteristics

RAM128MB, DDR3
FLASH storage16 MB serial flash

Firmware/Configuration

WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices at once
Keep settingsUpdate FW without losing current configuration

Firmware Customisation

Operating systemTSWOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment provided

Performance Specifications

Bandwidth (Non-blocking)20 Gbps
Forwarding rate14.88 Mpps
Packet buffer512 KB
MAC address table size8K entries
Jumbo frame support10000 bytes

Power

Connector2-pin industrial DC power socket
Input voltage range7 – 57 VDC, reverse polarity protection: -80Vmax
PoE-Out input voltage range44 – 57 VDC
Power consumptionIdle: < 3 W / Max: 8 W / PoE Max: 248 W
Surge at AC mains power port** 1kV Line to line; 2kV line to ground, 1.2/50us, IEC 61000-4-5
Surge at signal port (Ethernet) 1kV Line to Ground, 1.2/50us, IEC 61000-4-5

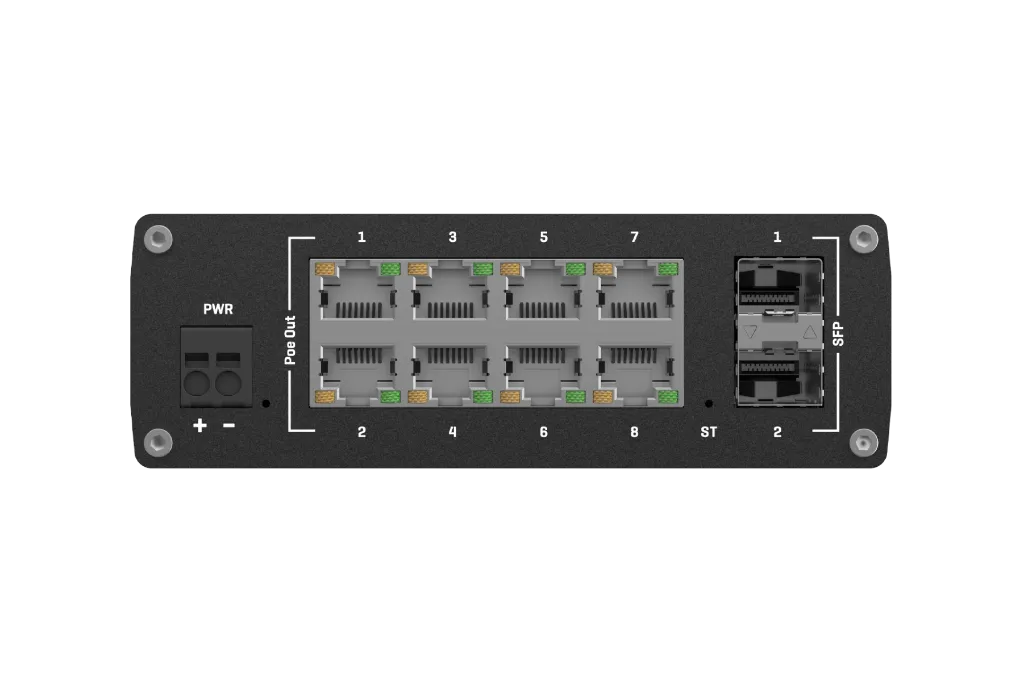

Physical Interfaces

EthernetSurge at signal port (Ethernet): 1kV Line to Ground, 1.2/50us, IEC 61000-4-5
Fibre2 x SFP ports
Status LEDs1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power1 x 2-pin industrial DC power socket
ResetSoftware reset button
Other1 x Grounding screw

Physical Specification

Casing materialAnodised aluminium housing and panels
Dimensions (W x H x D)132 x 44.2 x 122.2 mm
Weight610 g
Mounting optionsIntegrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature-40 °C to 75 °C
Operating humidity5% to 95% non-condensing
Ingress Protection RatingIP30

Manual & Documentation

TSW202 FLYER (EN)
TSW202 DATASHEET (EN)

STANDARD PACKAGE*

  • TSW202
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

CLASSIFICATION CODES

HS Code: 851762
HTS: 8517.62.00

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS

Hardware version Supported frequencies Standard order code / Package Contains
TSW202 *****0
PROFINET disabled by default 		N/A TSW202000000 / Standard package without PSU
TSW202000030 / Standard package with EU PSU without connector
TSW202000040 / Standard package with US PSU without connector
TSW202 *****1
Profinet Class B conformance 		N/A TSW202000001 / Standard package without PSU

For more information on all available packaging options – please contact us directly.
