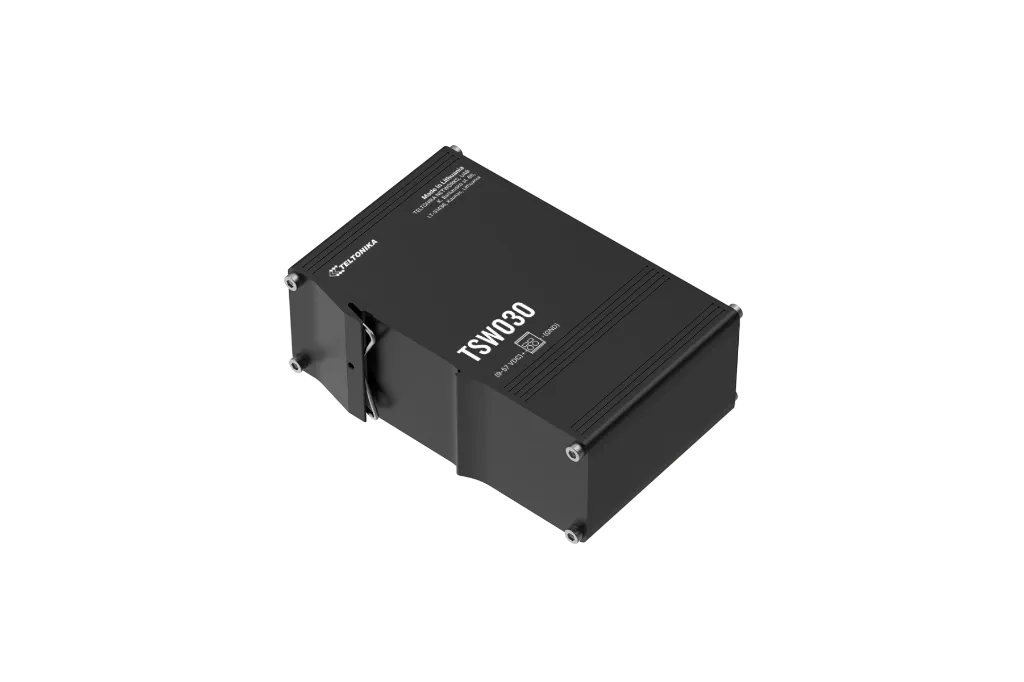

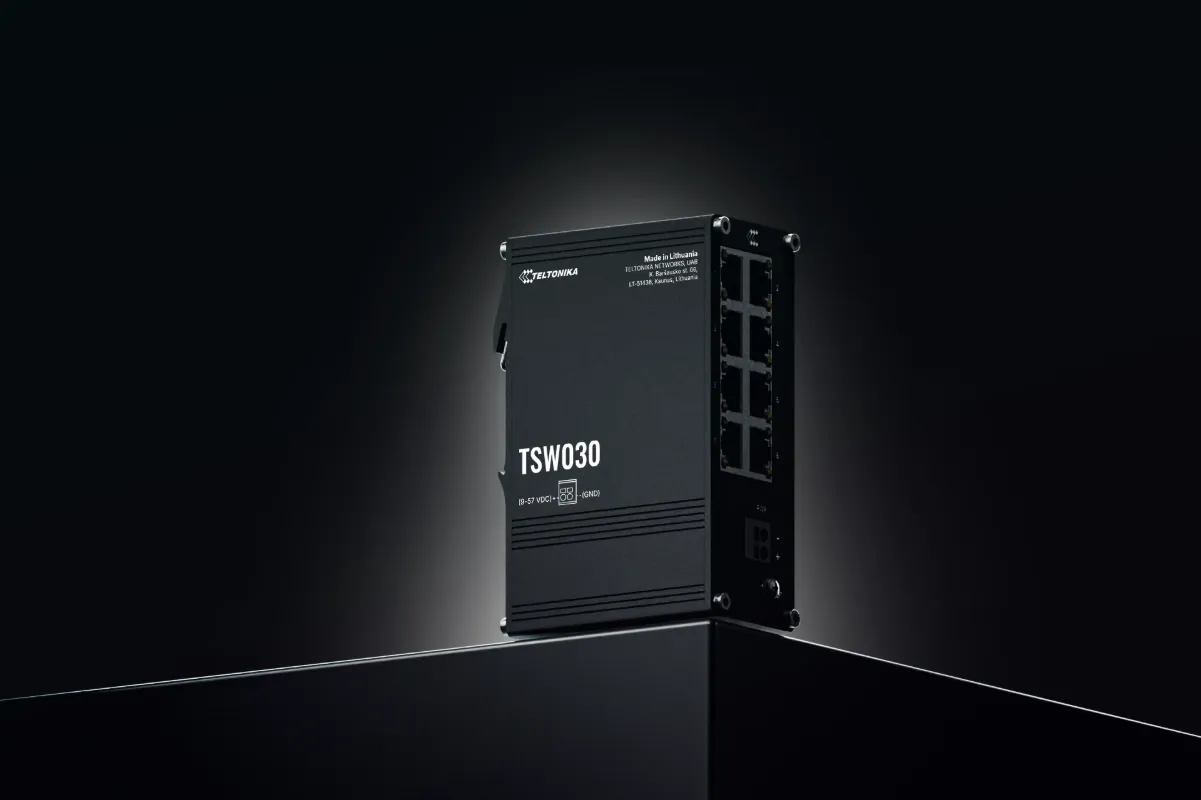

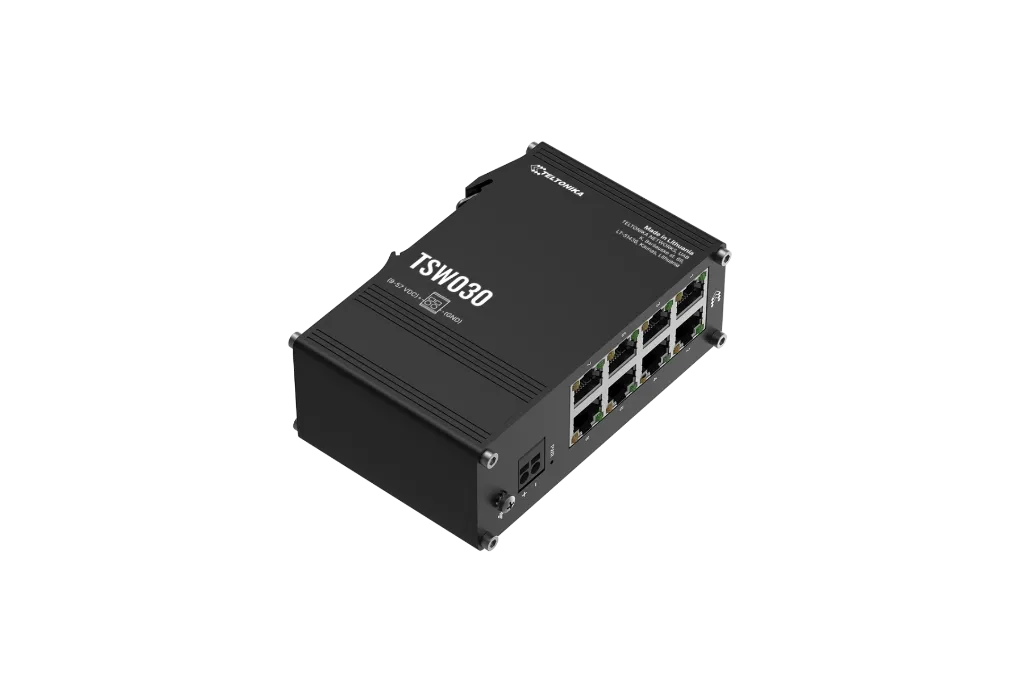

TSW030

8-port Ethernet Switch

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

₹ 1,000.00 ₹ 1,000.00

  • Wi-Fi
  • Cellular Connectivity
  • Ethernet Ports
  • Brand
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Ethernet Ports: 4 Eth Ports
Brand: Teltonika

ETHERNET

Ethernet 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet Profinet Class A conformance (available with optional order code)

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking) 20 Gbps
Packer buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes

POWER

Connector 2-pin industrial DC power socket
Input voltage range 7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Power consumption Idle: 0.5 W / Max: 1.5 W

PHYSICAL INTERFACES

Ethernet 8 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x Power LED, 16 x ETH status LEDs
Power 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material Anodised aluminium housing and panels
Dimensions (W x H x D) 113.1 x 41.2 x 74.6 mm
Weight 256 g
Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

OPERATING ENVIRONMENT

Operating temperature -40 °C to 75 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

REGULATORY & TYPE APPROVALS

Regulatory CE, UKCA, EAC, E-mark, FCC, ISED (IC), NOM, NYCE, RCM, REACH, RoHS, WEEE, CB, UL/CSA Safety, MTCTE

SAFETY (ORDINARY LOCATIONS)

Standards UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Manual & Documentation

TSW030 FLYER (EN)
TSW030 DATASHEET (EN)

STANDARD PACKAGE*

  • TSW030
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

CLASSIFICATION CODES

HS Code: 851762
HTS: 8517.62.00

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS

Hardware version Supported frequencies Standard order code / Package Contains
TSW030 *****0 N/A TSW030000000 / Standard package without PSU
TSW030 *****1
Profinet Class A conformance 		N/A TSW030000001 / Standard package without PSU
