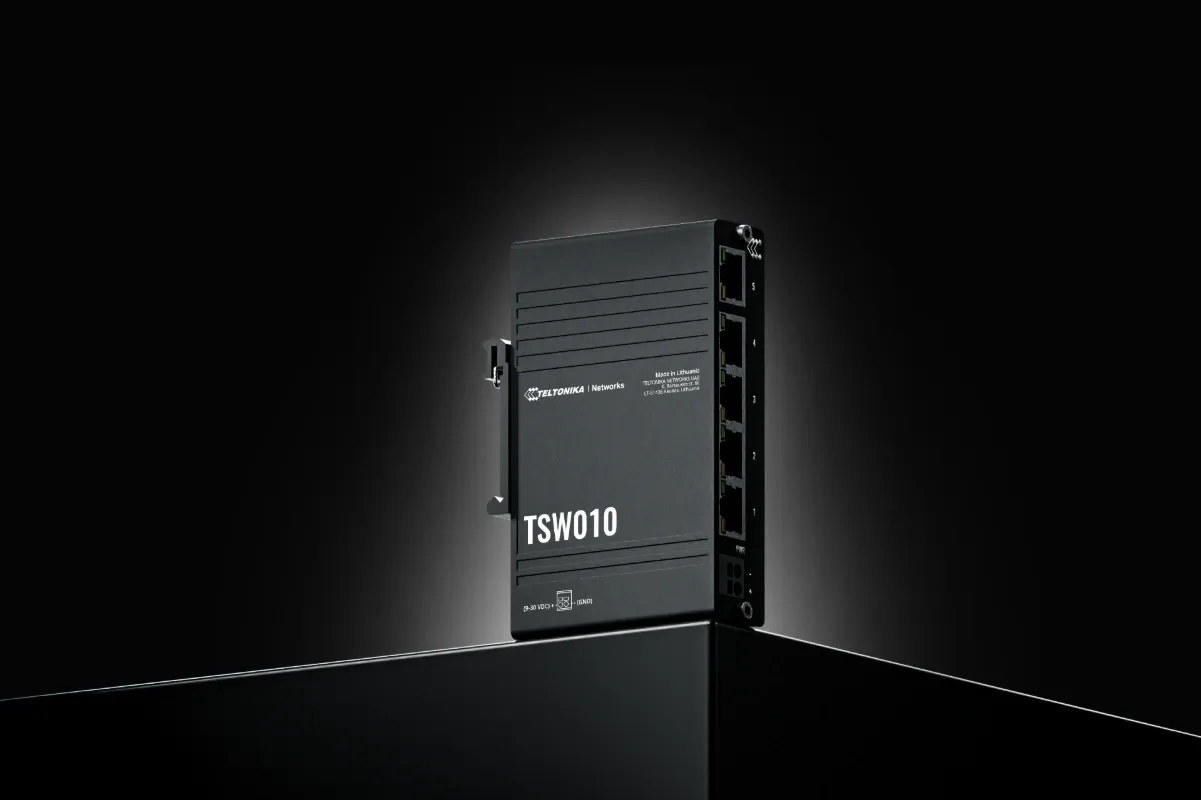

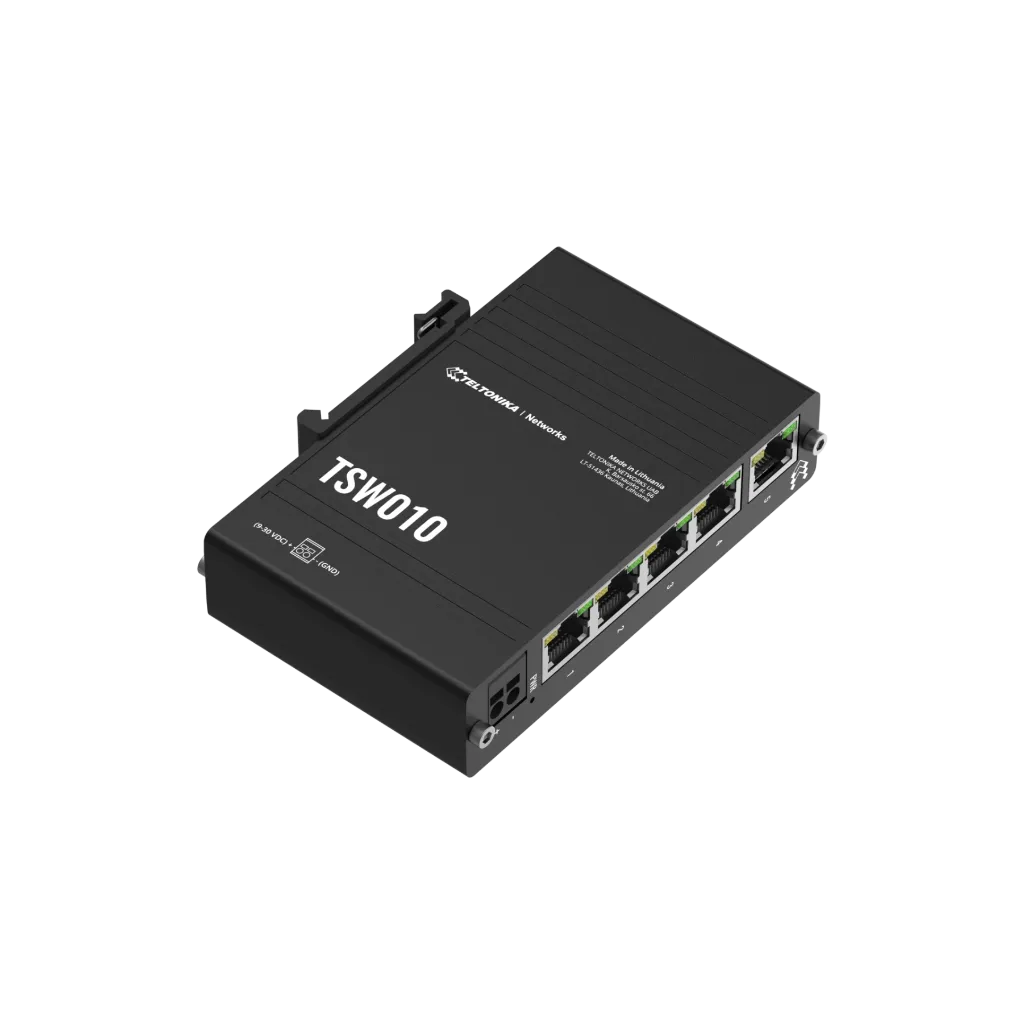

TSW010

DIN RAIL ETHERNET SWITCH

TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

₹ 1,000.00 ₹ 1,000.00

  • Wi-Fi
  • Cellular Connectivity
  • Ethernet Ports
  • Brand
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Ethernet Ports: 4 Eth Ports
Brand: Teltonika

Ethernet

ETH 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards 802.3i, 802.3u, 802.3x, 802.3az

Industrial Protocols

Profinet Profinet Class A conformance (available with optional order code)

Performance Specifications

Bandwidth (Non-blocking) 1 Gbps
MAC address table size 2K entries
Jumbo frame support 2048 bytes

Power

Connector 2-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection, voltage surge/transient protection
Input voltage range* 12-40 VAC (50/60Hz), reverse polarity protection, voltage surge/transient protection

*Feature availability varies by order code
PoE (passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: 0.3 W / Max: 0.9 W

Physical Interfaces

Ethernet 5 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x Power LED, 10 x ETH status LEDs
Power 1 x 2-pin industrial DC power socket

Physical Specification

Casing material Anodised aluminium housing and panels
Dimensions (W x H x D) 113.1 x 27.4 x 80.5 mm
Weight 146.5 g

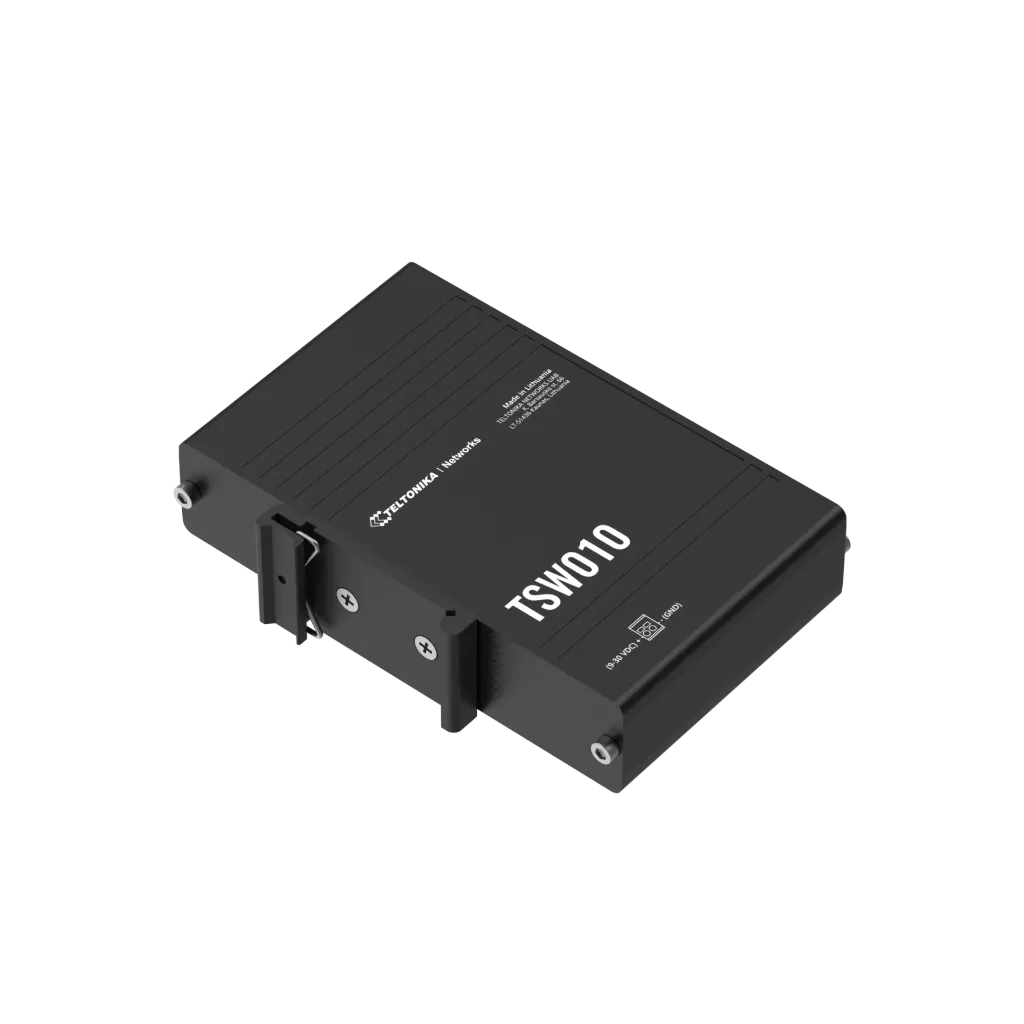

Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature -40 °C to 75 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety, MTCTE

EMC Emissions & Immunity

Standards EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014

Safety

Standards CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018

Safety (Ordinary Locations)

Standards UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Manual & Documentation

TSW010 FLYER (EN)
TSW010 DATASHEET (EN)

STANDARD PACKAGE*

  • TSW010
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

CLASSIFICATION CODES

HS Code: 851762
HTS: 8517.62.00

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS

Hardware version Supported frequencies Standard order code / Package Contains
TSW010 *****0
Input voltage range: 9 - 30 VDC 		N/A TSW010000000 / Standard package without PSU
TSW010000010 / Mass packing code
TSW010 *****1
Profinet Class A conformance
Input voltage range: 9 - 30 VDC 		N/A TSW010000001 / Standard package without PSU
TSW010 *1***0
Input voltage range: 12-40 VAC (50/60Hz) 		N/A TSW010010000 / Standard package without PSU
TSW010010010 / Mass packing code
