TAP200

Wi-Fi 5 ACCESS POINT

Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.

₹ 1,000.00 ₹ 1,000.00

  • Wi-Fi
  • Cellular Connectivity
  • Ethernet Ports
  • Brand
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Ethernet Ports: 4 Eth Ports
Brand: Teltonika

Wireless

Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode (Hide SSID)
Wi-Fi users Up to 100 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

Ethernet 1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Network protocols TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Hotspot 2.0 Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks

Traffic Management

Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Security

Authentication SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
VLAN Tag-based VLAN separation
Certificate Manager Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
802.1x Port-based network access control client

Data to Server

Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
API Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation.

Monitoring & Management

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
Email Receive email message status alerts of various services
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

System Characteristics

CPU MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
RAM 256 MB, DDR3
FLASH storage 16MB, SPI NOR Flash

Firmware/Configuration

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device

Power

Connector RJ45 Socket
Input voltage range 44.0 – 57.0 V
PoE standards 802.3af PoE Class 1
Power consumption Idle: < 4 W / Max: < 5.5 W

Physical Interfaces

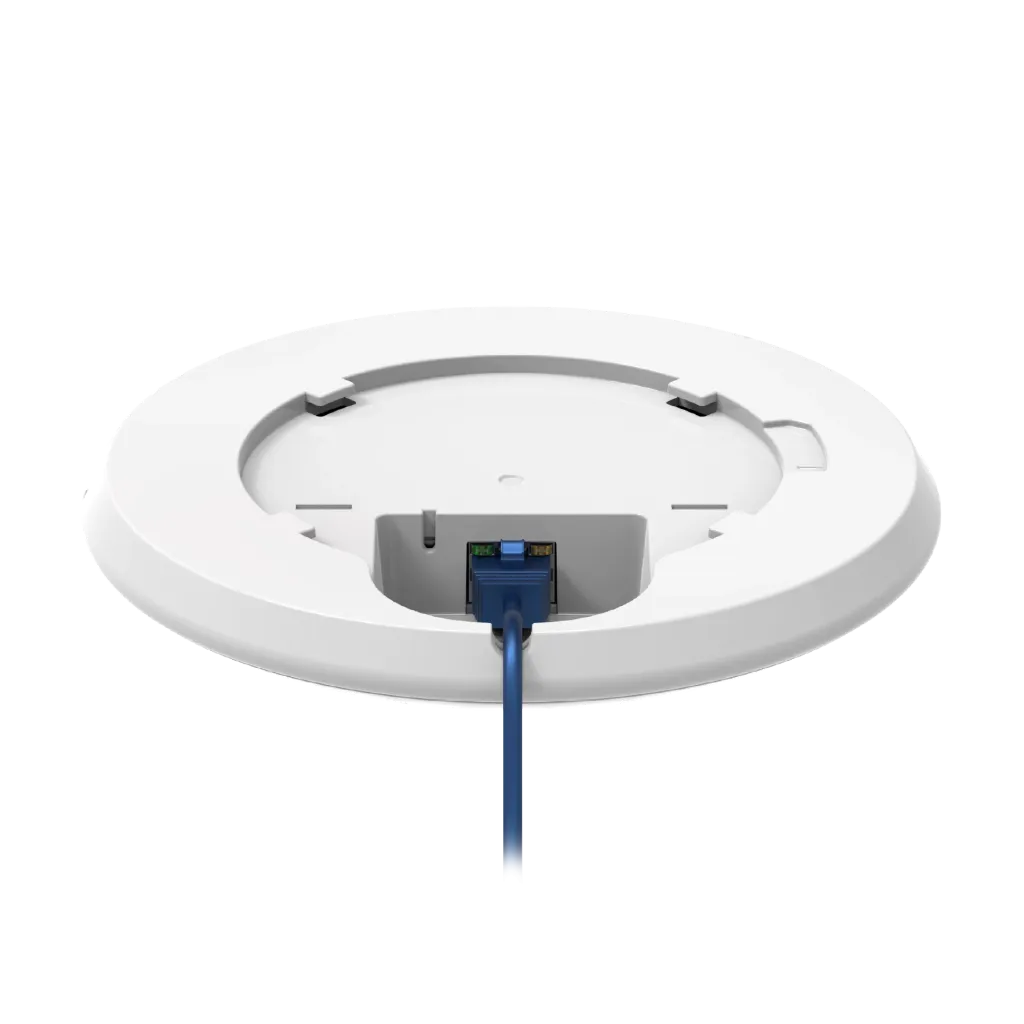

Ethernet 1 x RJ45 port, 10/100/1000 Mbps
Status LEDs 1 x Power LED (can be turned off from web-UI)
Antennas 2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
Antennas specifications 2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
Reset Reboot/User default reset/Factory reset button

Physical Specification

Casing material UV stabilized plastic
Dimensions (W x H x D) Ø 158 mm x 30 mm
Weight 190 g

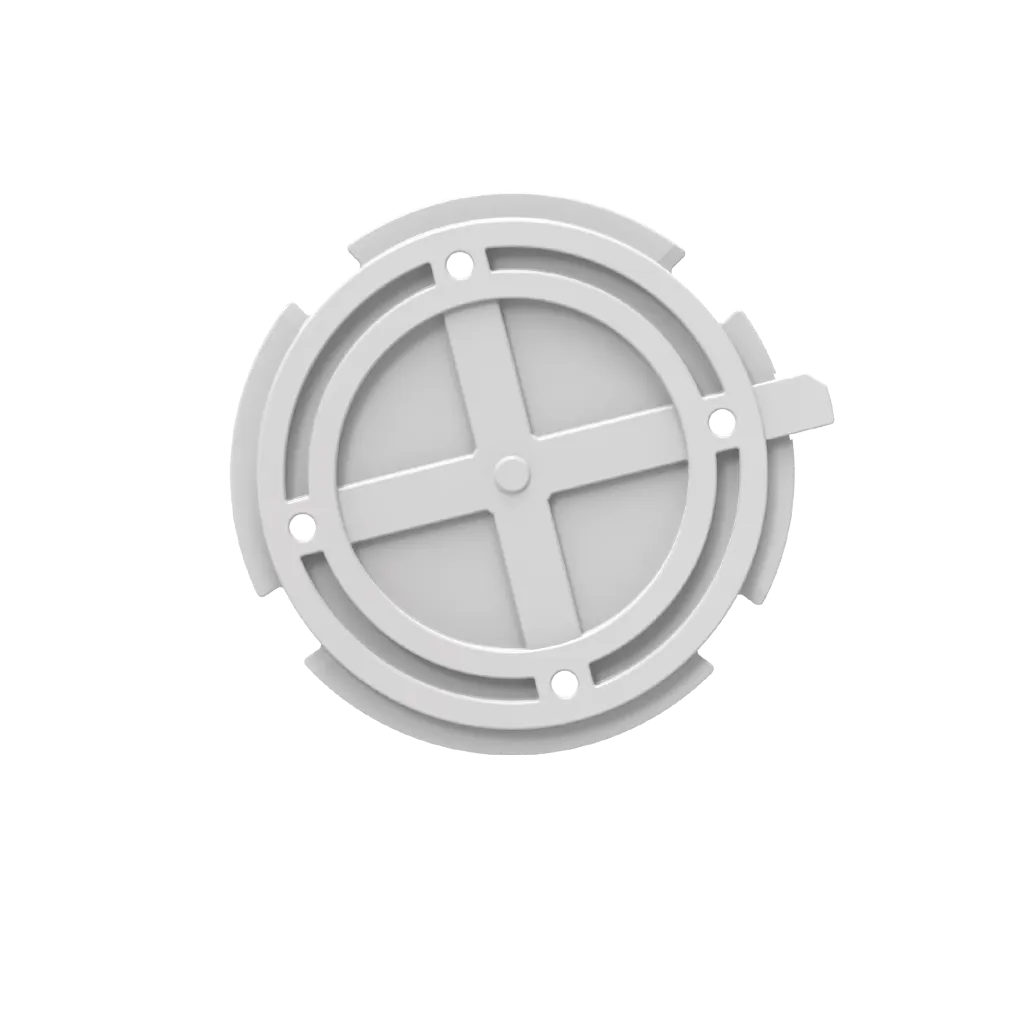

Mounting options AP mounting bracket (for ceiling mount)

Operating Environment

Operating temperature -40 °C to 50 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, RoHS, REACH, WEEE, SDPPI (POSTEL)

EMC Emissions & Immunity

Standards EN 55032:2015 + A11:2020
EN 55035:2017 + A11:2020
EN 61000-3-3:2013+A1:2019 + A2:2021
EN IEC 61000-3-2:2019 + A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020

RF

Standards EN 300 328 V2.2.2
EN 300 893 V2.1.1
EN 300 440 V2.2.1

Safety

Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018

Manual & Documentation

TAP200 FLYER (EN)
TAP200 DATASHEET (EN)
TAP200 Standard Package

STANDARD PACKAGE*

  • Access Point TAP200
  • QSG (Quick Start Guide)
  • Wi-Fi Information sticker
  • Packaging box

*Standard package contents may differ based on standard order codes.

CLASSIFICATION CODES

HS Code: 851762

HTS: 8517.62.00

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS

Hardware version Supported frequencies Standard order code / Package Contains
TAP200 ****** TAP20000AC00 / Standard package
TAP20000AA00 / Standard package with EU PoE injector
TAP200000100 / Standard package with UK PoE injector
TAP200000500 / Standard package with US PoE injector
