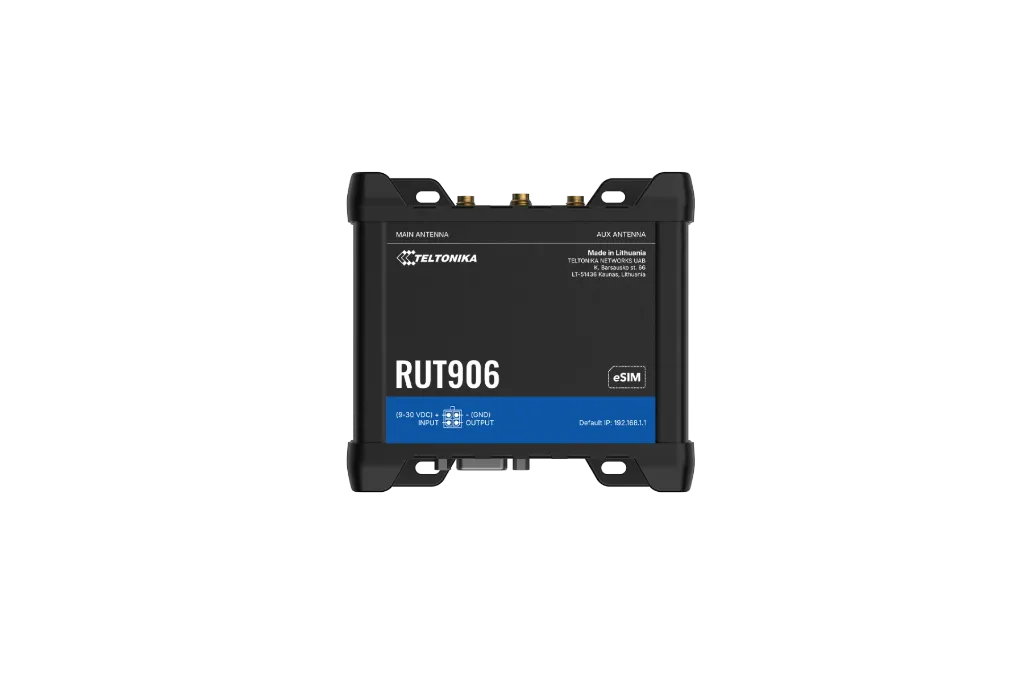

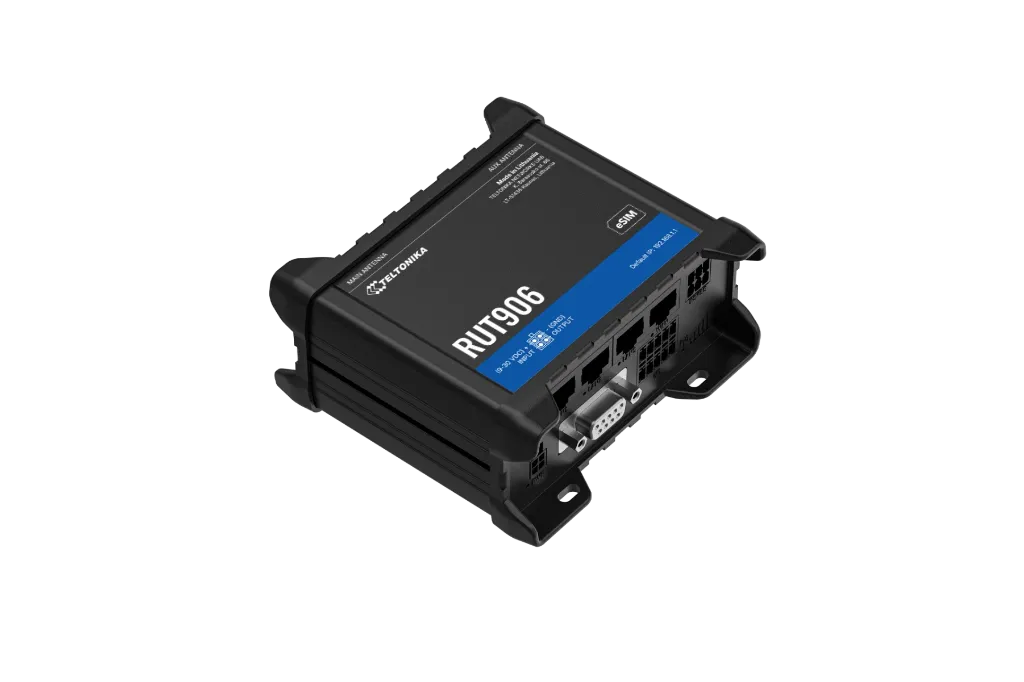

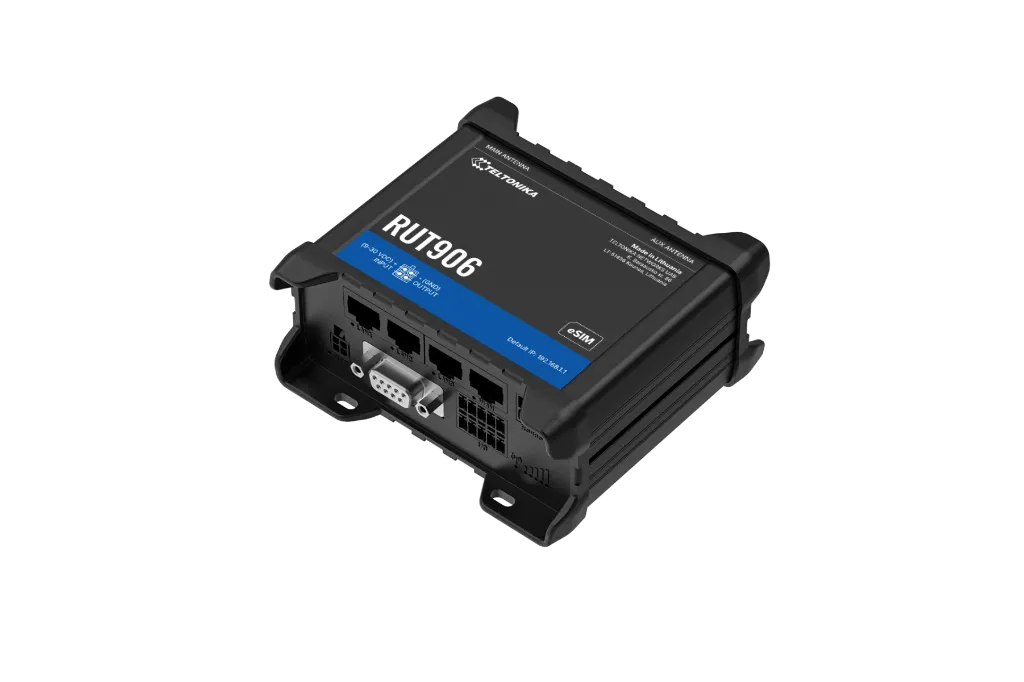

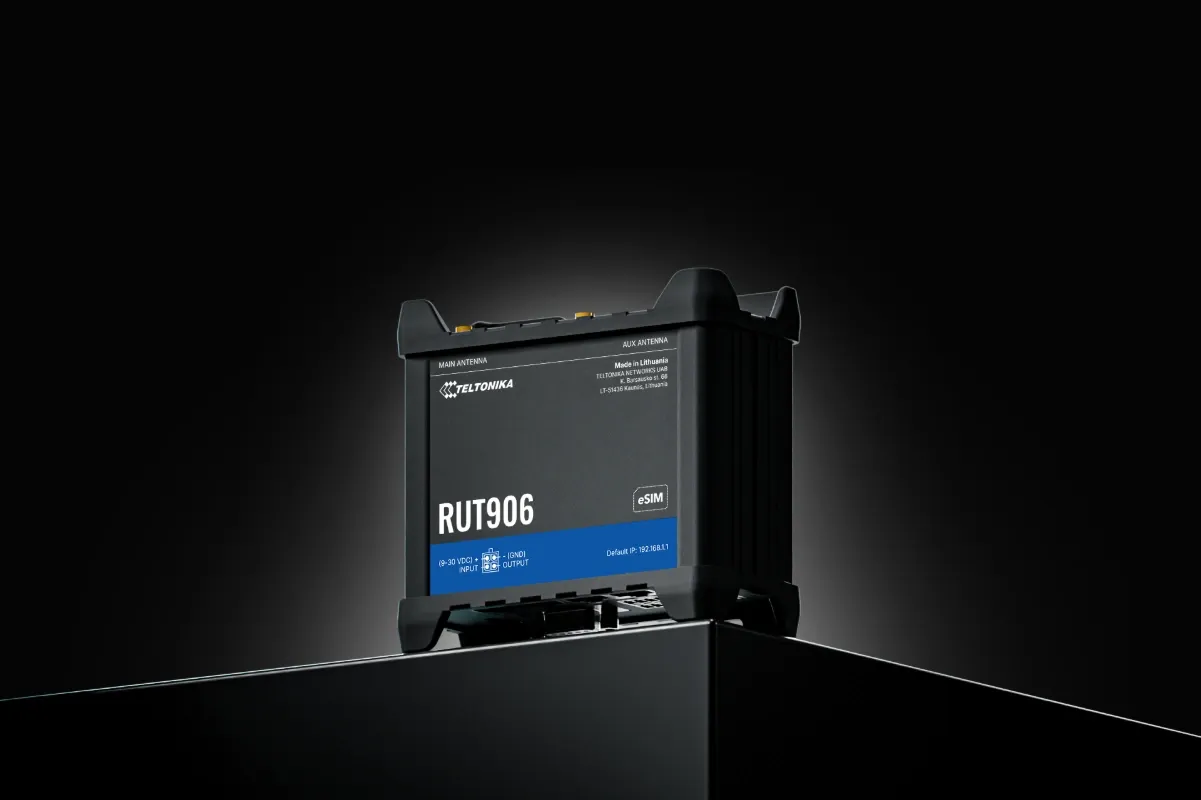

RUT906

4G LTE RS232/RS485 Router

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.

₹ 1,000.00 ₹ 1,000.00

  • Wi-Fi
  • Cellular Connectivity
  • Ethernet Ports
  • Brand
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Ethernet Ports: 4 Eth Ports
Brand: Teltonika

Mobile
Mobile module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release Release 9
eSIM* Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
*Feature availability varies by order code
SIM switch* SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
*Feature availability varies by order code
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list Operator block/allow list (by country or separate operators)
Band management Band lock, Used band status display
SIM idle protection service Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Wireless
Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi users Up to 100 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet
WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page View all your Firewall statistics, rules, and rule counters
Port management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >77 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring Mirroring network traffic on Ethernet ports for monitoring and analysis

Security
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter Block list for blocking out unwanted websites, allow list for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
Certificate Manager Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BacNET
Supported modes Router
Supported connection types IP, RTU (RS485, USB)
Configuration options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA
Supported modes Client, Server
Supported connection types TCP

DNP3
Supported modes Station, Outstation
Supported connection types RS232, RS485, TCP, USB

MODBUS
Supported modes Server, Client
Supported connection types RTU (RS232, RS485), TCP, USB
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Feature Details

Data to Server
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

DLMS/COSEM
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types RS232, RS485, TCP

API
Teltonika Networks Web API Teltonika Networks Web API (beta) support.
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation .

Monitoring & Management
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

Firmware/Configuration
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device

Location Tracking
GNSS GPS. (GLONASS, BeiDou, Galileo and QZSS - under development)
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones

Serial
RS232 DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate
RS485 RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate
Serial functions Console, Serial over IP, Modem

USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input/Output
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

SD CARD
Physical size Micro SD (internal)
Applications Samba share, Storage Memory Expansion, DLNA
Capacity Up to 2 TB
Storage formats FAT32, NTFS, ext2, ext3, ext4

Power
Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption < 2 W idle, < 7 W Max

Physical Interfaces
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4-pin power connector
Input/output 1 x 10-pin industrial socket for inputs/outputs
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

Physical Specification
Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 109.5 x 50 x 100 mm
Weight 295 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals
Regulatory CE, UKCA, RCM, CB, E-mark, ETA-WPC, MTCTE

EMC Emissions & Immunity
Standards EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 301 489-19 V2.2.0
EN 301 489-52 V1.2.1
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
Standards CE: EN 62311; CB: IEC 62368-1:2018

RF
Standards EN 301 908-1;
EN 301 908-2;
EN 301 908-13;
EN 300 328;

Manual & Documentation

RUT906 FLYER (EN)
RUT906 DATASHEET (EN)
STANDARD PACKAGE*
  • Router RUT906
  • 9 W PSU
  • 2x Mobile antennas (magnetic mount, SMA male, 3 m cable)
  • 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • GNSS antenna (adhesive, SMA male, 3 m cable)
  • RS485 connector block
  • I/O connector block
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box

*Standard package contents may differ based on standard order codes.

CLASSIFICATION CODES

HS Code: 851762
HTS: 8517.62.00

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS
Hardware version Supported frequencies Standard order code / Package Contains
RUT906 03*****
Europe1, The Middle East1, Africa, Thailand,
Australia, New Zealand
eSIM 		4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28
4G (LTE-TDD): B38, B40, B41
3G: B1, B8
2G: B2, B8 		RUT906030200 / Standard package with UK PSU
RUT906030400 / Standard package with Universal PSU
RUT906030100 / Mass packing
RUT906030700 / Standard package with EU PSU
RUT906 0******
Europe1, The Middle East1, Africa, Thailand,
Australia, New Zealand 		4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28
4G (LTE-TDD): B38, B40, B41
3G: B1, B8
2G: B2, B8 		RUT906000000 / Standard package with EU PSU
RUT906000200 / Standard package with UK PSU
RUT906000800 / Standard package with AU PSU
RUT906000300 / Standard package with power cable (4-way screw terminal)
RUT906000400 / Standard package with Universal PSU
RUT9060000C0 / Standard package without PSU
RUT906000100 / Mass packing code

The price and lead-times for region (operator) specific versions may vary. For more information please contact us.

1 - Regional availability - excluding Russia, Belarus & Iran

  What do you want to promote ?     See more

Call Us Now!!
