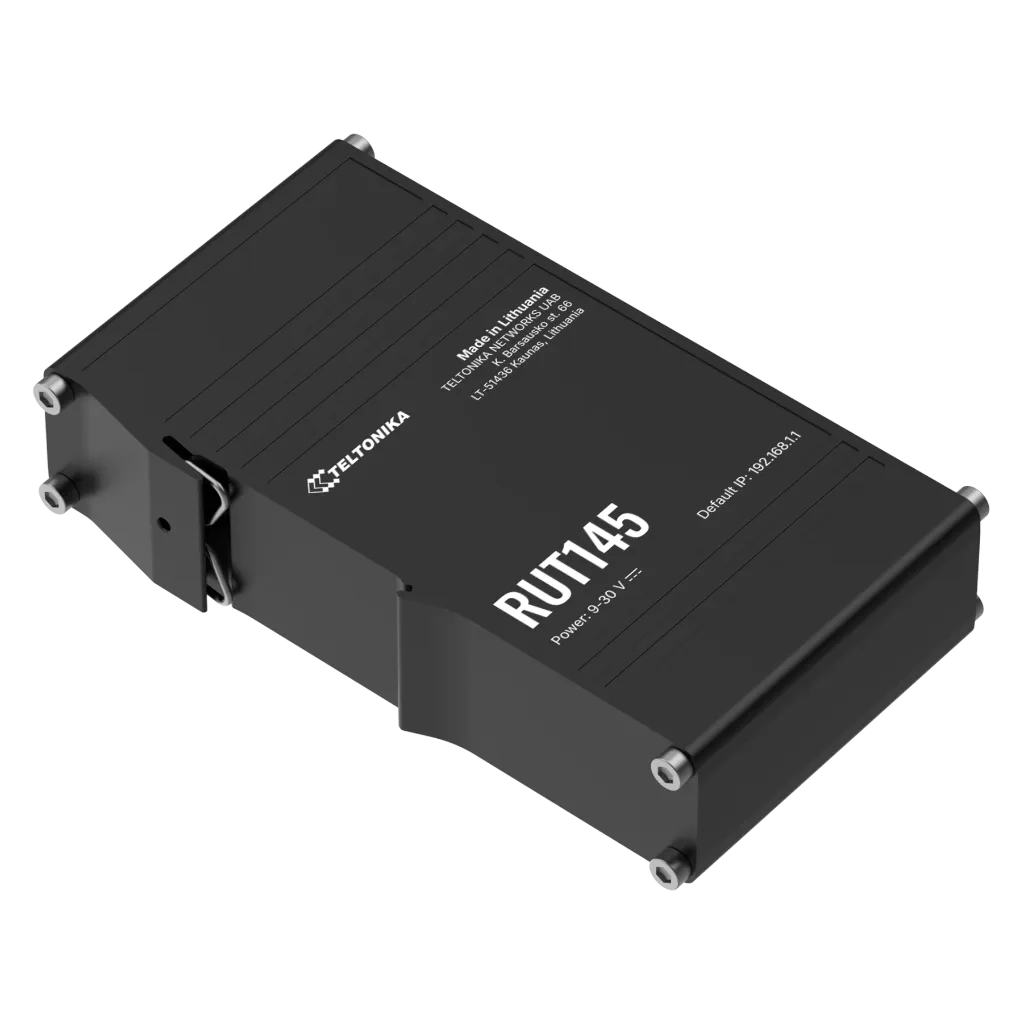

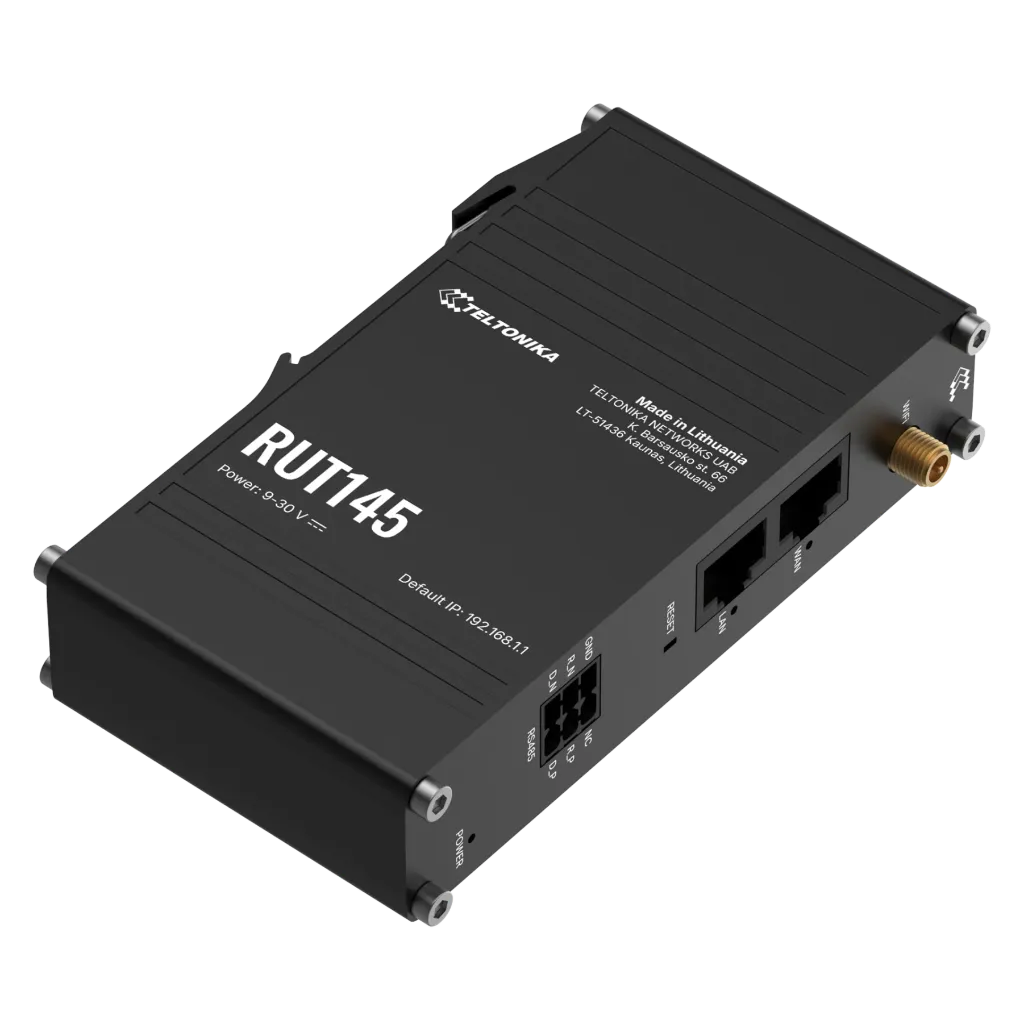

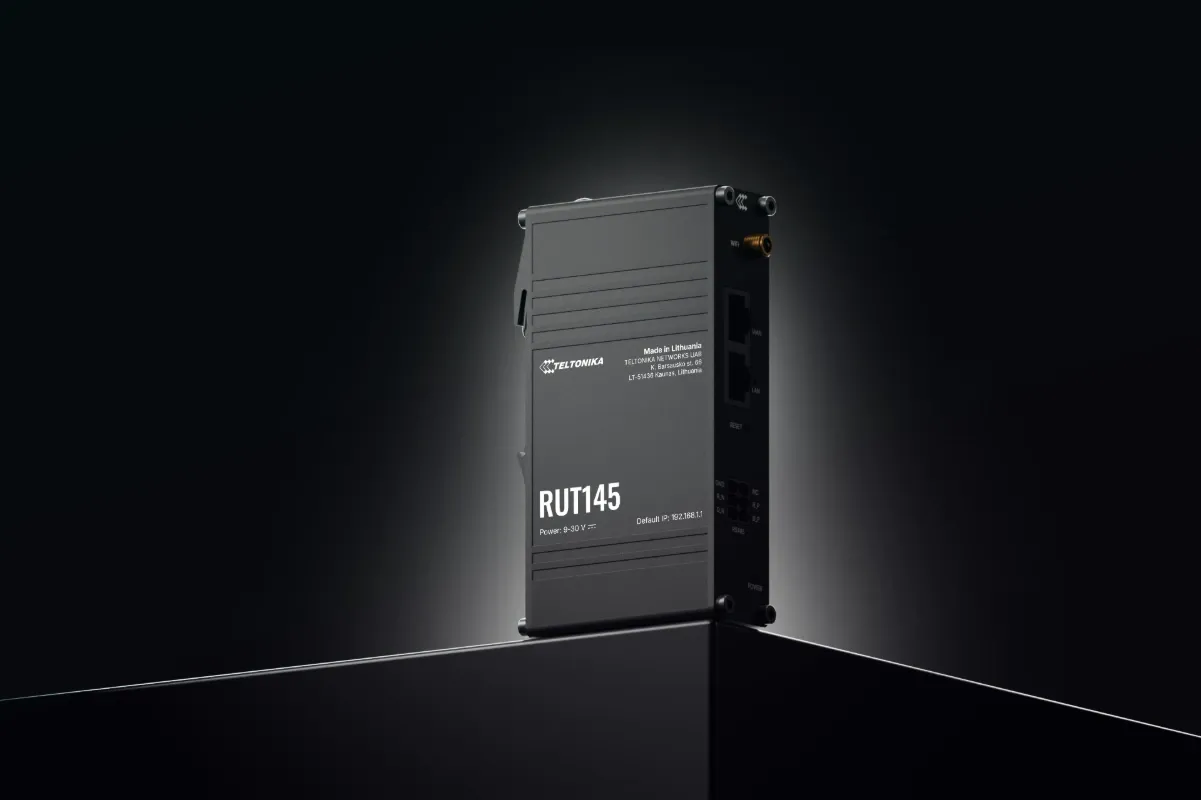

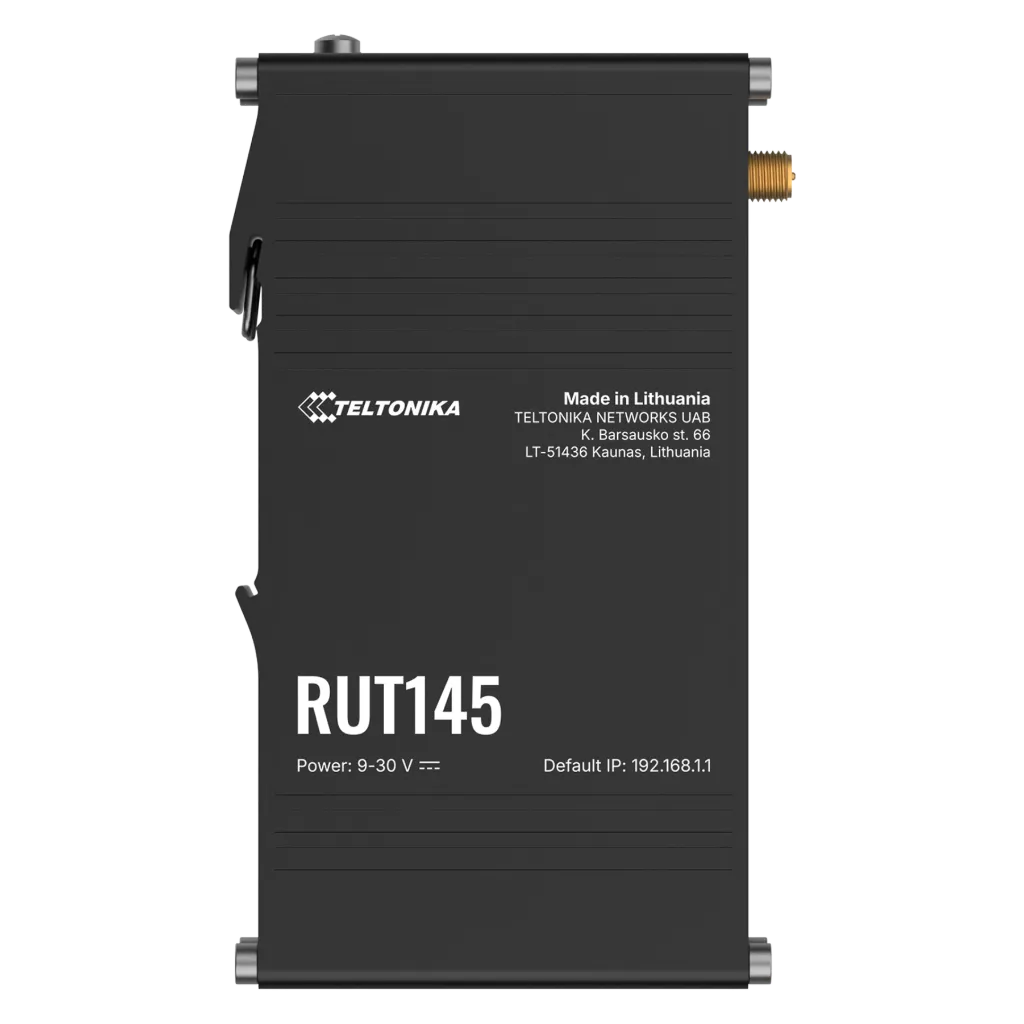

RUT145

INDUSTRIAL ROUTER WITH RS485

The RUT145 is an industrial router with RS485 communication for manufacturing and automation, specifically designed to bridge the communication gap between RS485 field devices and IP networks. It provides seamless Ethernet/Wi-Fi connectivity combined with a native RS485 multi-drop interface. The device, running on RutOS, offers powerful network security and industrial data collection tools. Its narrow, DIN-rail-mountable design and integration with the RMS platform ensure secure remote and cost-efficient remote management at scale.

₹ 1,000.00 ₹ 1,000.00

  • Wi-Fi
  • Cellular Connectivity
  • Ethernet Ports
  • Brand
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Ethernet Ports: 4 Eth Ports
Brand: Teltonika
Wireless
Wireless mode IEEE 802.11b/g/n, (Wi-Fi 4) Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi users Up to 50 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet
WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page View all your Firewall statistics, rules, and rule counters
Port management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >77 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
IGMP Proxy Possibility to relay multicast membership messages between hosts and a router, enabling multicast traffic to flow across different network segments
Security
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
WEB filter Block list for blocking out unwanted websites, allow list for specifying allowed sites only
Access control Flexible access control of SSH, Web interface, CLI and Telnet
Certificate Manager Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
802.1x Port-based network access control client and server support
VPN
OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
EoIP Ethernet over IP (EoIP) tunnelling is a protocol based on GRE RFC 1701 that creates an Ethernet tunnel between two routers on top of an IP connection
BACnet
Supported modes Router
Supported connection types IP, RTU(RS485)
Configuration options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)
OPC UA
Supported modes Client, Server
Supported connection types TCP
MODBUS
Supported modes Server, Client
Supported connection types TCP, RTU(RS485)
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Data to Server
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes Station, Outstation
Supported connection TCP, RTU(RS485)
DLMS/COSEM
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported modes Client
Supported connection types TCP, RTU(RS485)
API
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation .
Monitoring & Management
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
Email Receive email message status alerts of various services
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)
IoT Platforms
ThingWorx Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot
Cumulocity - Cloud of Things Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
System Characteristics
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB serial NOR flash
Firmware/Configuration
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
Firmware Customisation
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device
Serial
RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Serial functions Console, Serial over IP, Modem, MODBUS gateway
Power
Connector 3-pos plugable terminal block
Input voltage range 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, IEEE802.3at and IEEE802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: < 1 W / Max: < 2 W

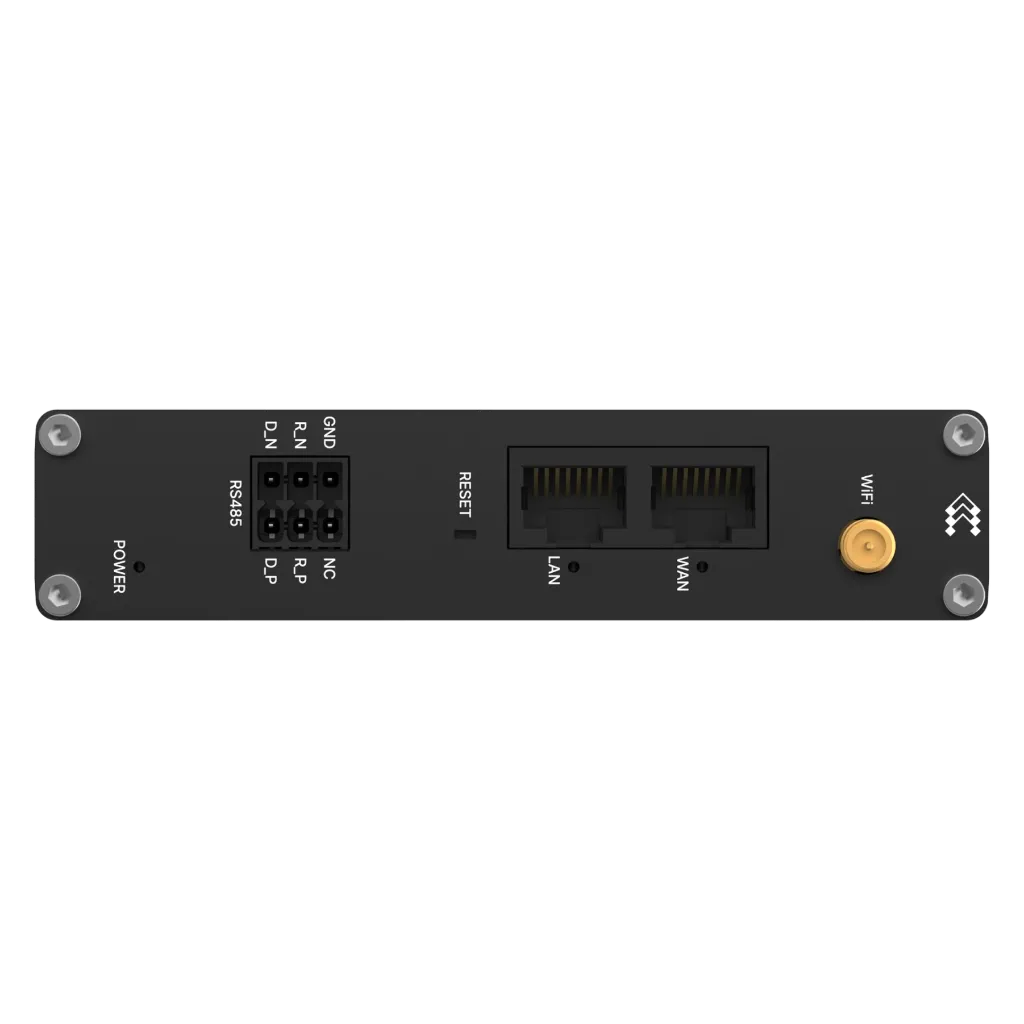

Physical Interfaces
Ethernet 2 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED
Power 1 x 3-pin power connector
Antennas 1 x RP-SMA for Wi-Fi
RS485 1 x 6-pin terminal block for 2-wire or 4-wire interface
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
Physical Specification
Casing material Anodised aluminium housing and panels
Dimensions (W x H x D) 113.10 x 25 x 68.6 mm
Weight 140 g
Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating Environment
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory & Type Approvals
Regulatory CE/RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE

Manual & Documentation

RUT145 FLYER (EN)
RUT145 Datasheet (EN)

Standard Package

  • Router RUT200
  • 9 W Power Supply Unit (PSU)
  • 2 × Mobile Antennas (Swivel, SMA Male)
  • 1 × Wi-Fi Antenna (Swivel, RP-SMA Male)
  • Quick Start Guide (QSG)
  • Packaging Box

Note: Standard package contents may differ based on standard order codes.

Classification Codes

  • HS Code: 851762
  • HTS: 8517.62.00

For more information about all available packaging options, please contact us directly.

Hardware Version Supported Frequencies Standard Order Code / Package Contains
RUT200 *3****

India 		4G (LTE-FDD): B1, B3, B5, B8
4G (LTE-TDD): B34, B38, B39, B40, B41
3G: B1, B5, B8
2G: B3, B8 		RUT200036000
Standard package with power cable (4-way screw terminal)

RUT200031030
Mass packing code
